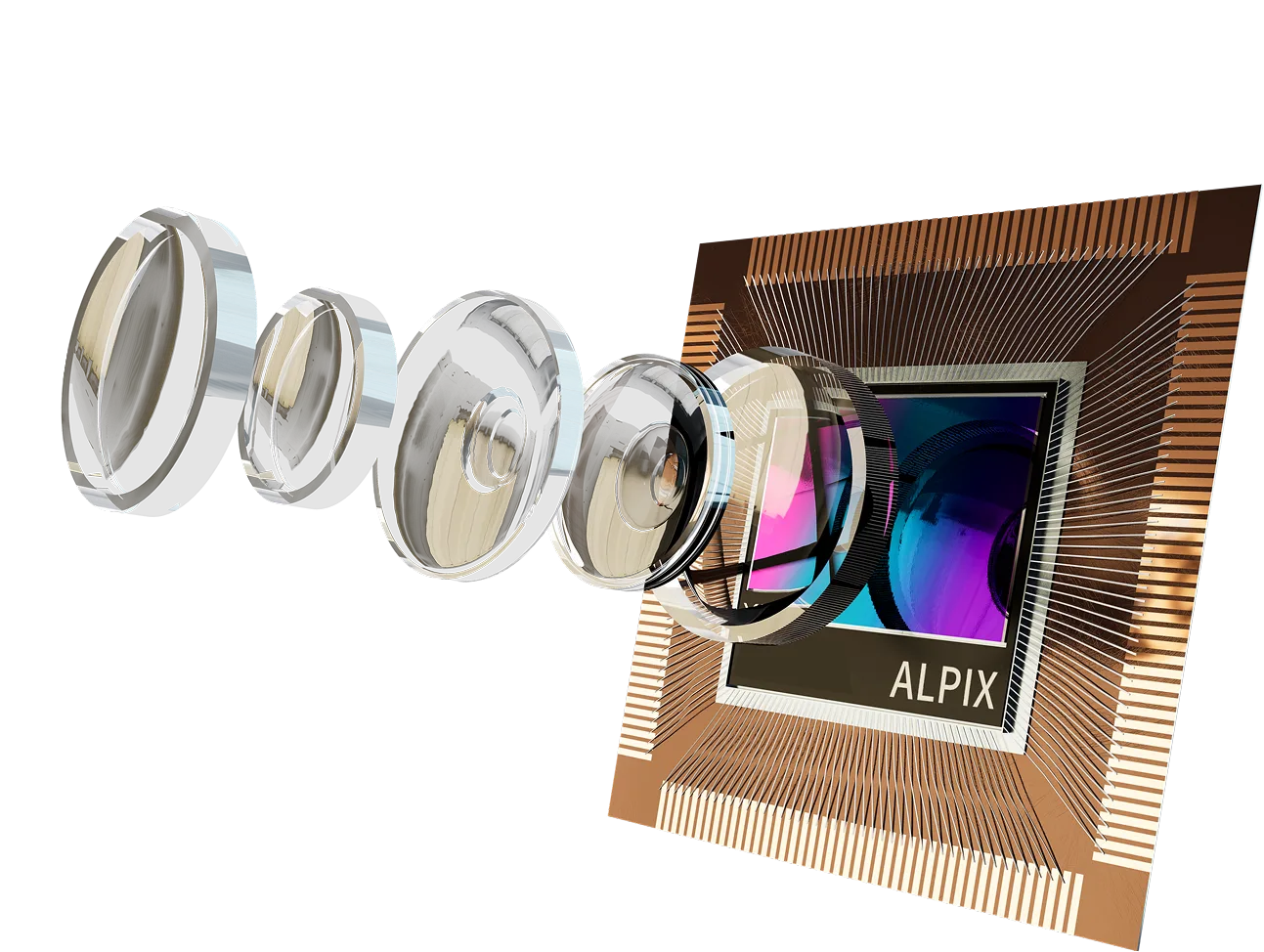

APX003
Hybrid Vision Sensor for mobile photography
The hybrid vision sensor designed for
mobile photography applications
APX003 outputs of frame-based image and event-based dynamic visual data in parallel. it offers an 8 MP image resolution with a pixel size of only 1.89 μm x 1.89 μm. By incorporating event sensing technology with high temporal resolution, high dynamic range, and low data volume.
APX003 enhances high-speed motion estimation of devices under complex lighting conditions. It enables energy-efficient imaging and vision applications, to meet the demands in smartphones, action cameras, and portable imaging devices.
Image resolution
Pixel size
Parallel
APS & EVS output
High temporal resolution
High dynamic range
Low data redundancy
Product Brief
EVS
- High frame rate
- High SNR
- High dynamic range
- High sensitivity
- Colored event data
- Superior low-light performance
APS
- High quality image
- High-speed data output
- Rolling shutter
Features
- 3D-stacked and BSl process
- APS/EVS/HVS modes
- 8MP image resolution
- High infrared performance
Functions
- Support HDR
- Configurable EVS contrast sensitivity and signal bandwidth
- Configurable EVS data format
- Support ROI (APS&EVS)
- Support mirror & reverse fuctions
- Support multi-camera synchronization
Interface
- Data interface：MIPI D-PHY
- Control interface：I²C & SPI
Applications
It enables energy-efficient and high-performed imaging applications such as deblur, video frame interpolation and so forth, meeting the high-end demands in smartphones, action cameras, and consumer drones.
Smartphones
Deblur, VFl, AI-ISP
Security cameras
Presence detection & target tracking
Action cameras
Deblur, ElS, VFl, Al-ISP
AI wearables
Eye/gesture tracking, snapshot
Robots
SLAM, obstacle avoidance
Mobile devices
Perception & image enhancement
Key Specification
*The specification are subject to the final product manual.Please contact us for more information if you are looking for a substaintial evaluation board for the innovative hybrid vision sensors
Resolution
APS: 3264 × 2448 (8M)
EVS: 816 × 612 (0.5M)
Pixel size
APS: 3264 × 2448 (8M)
Optical format
½"， CRA 34°
Shutter mode
Rolling shutter
EVS contrast sensitivity
Configurable 0-100％
Min.illumination
< 1 IuX
Frame rate
APS: 30 fps @ Full Resolution
EVS: 4000 fps @ Full Resolution
Package
COB
ROI
APS：Support
EVS：Support
Operating voltage
Analog: 3.0 V, 1.8 V
Digital: 1.1V
I/O: 1.8V
Imgae format
Raw 12 / Raw 10 / Raw8
Output interface
2×4 lane MIPI or 1 × 4 lane MIPl with VC mode
Dynamic range
APS: > 60 dB
EVS: > 100 dB
Chip size
8.3 mm × 6.9 mm
Product Comparison
*Specifications may vary depending on the product version and application, and may change over time. Verification by the customer's technical experts is required for the specific application. Please contact us for more information.
APX002

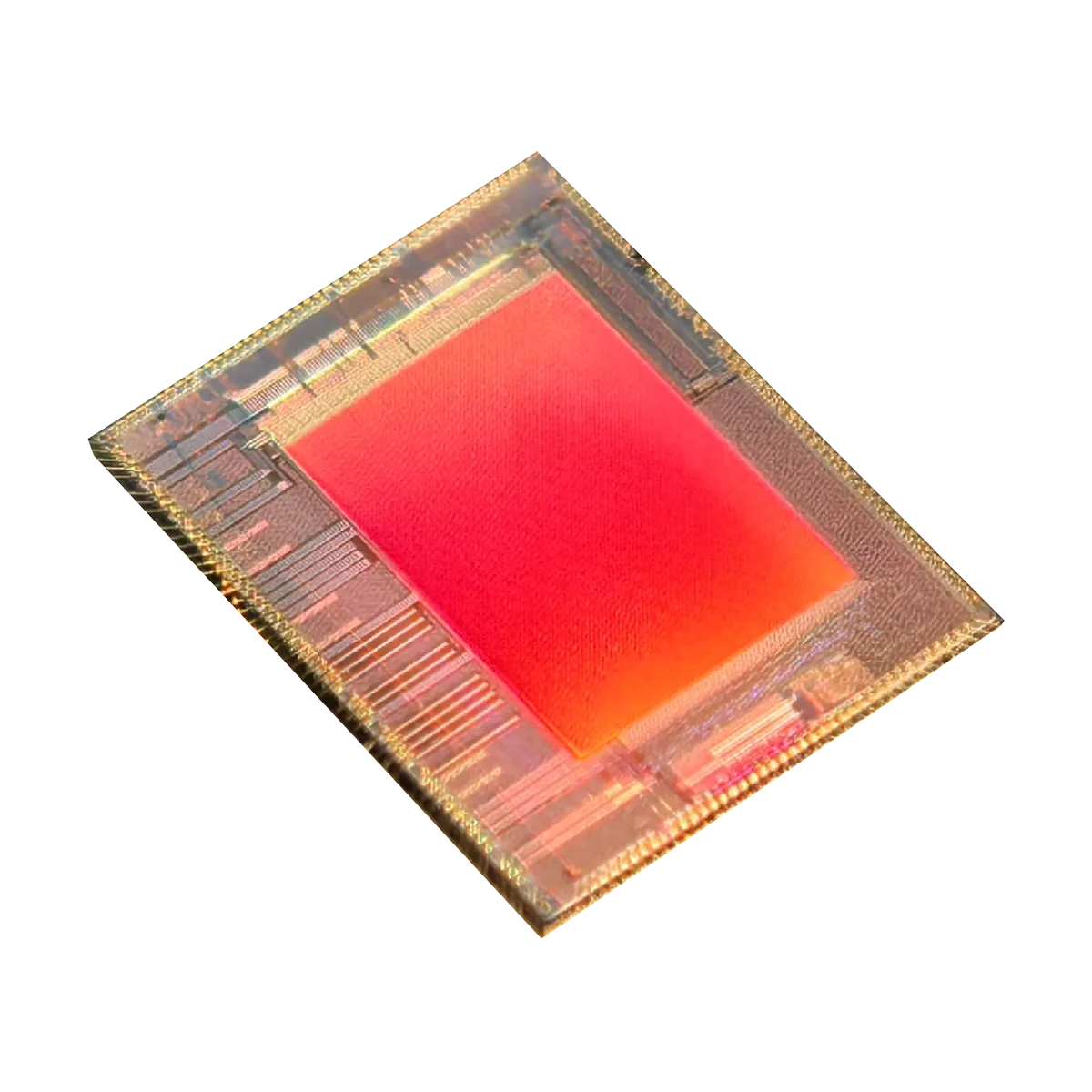

APX002

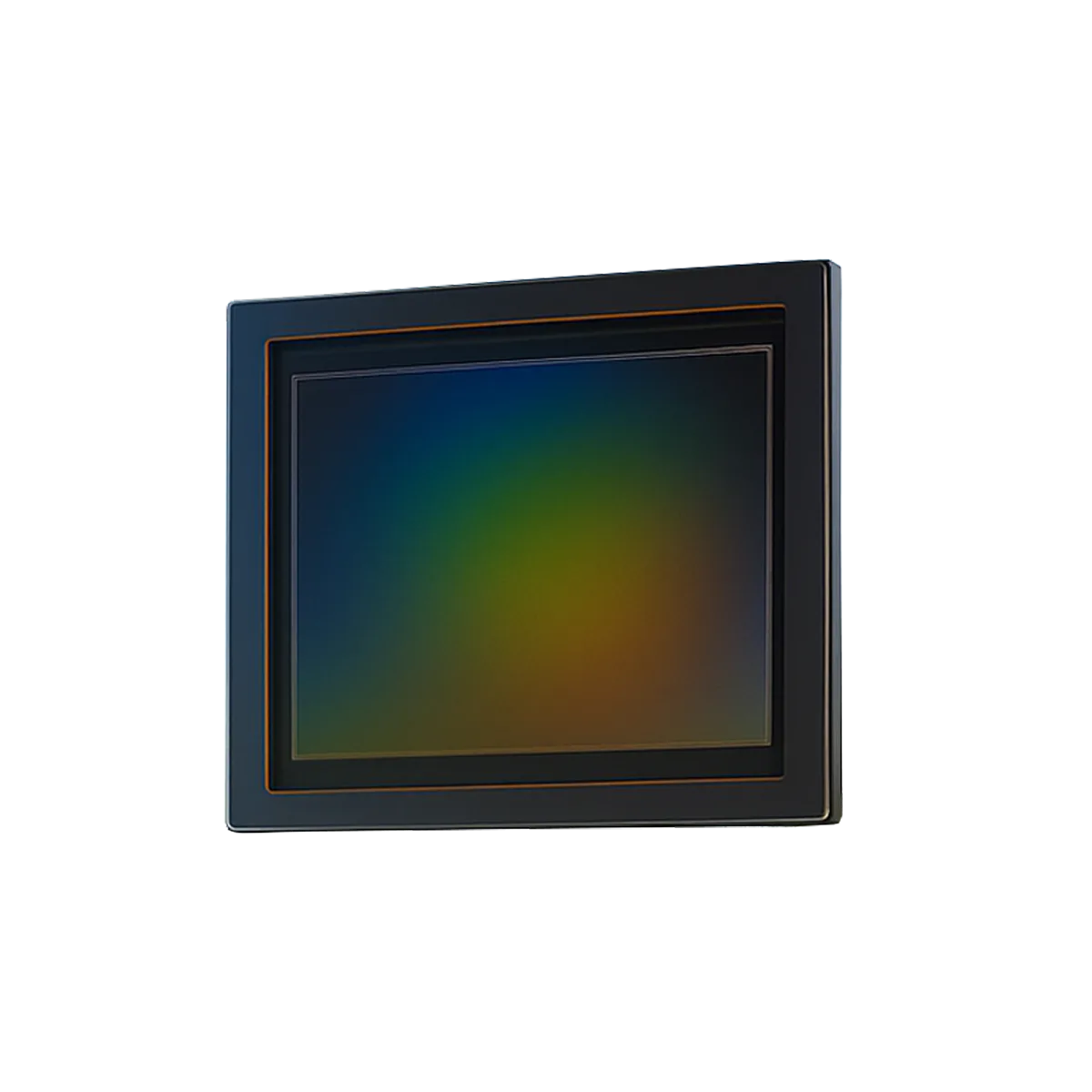

APX004

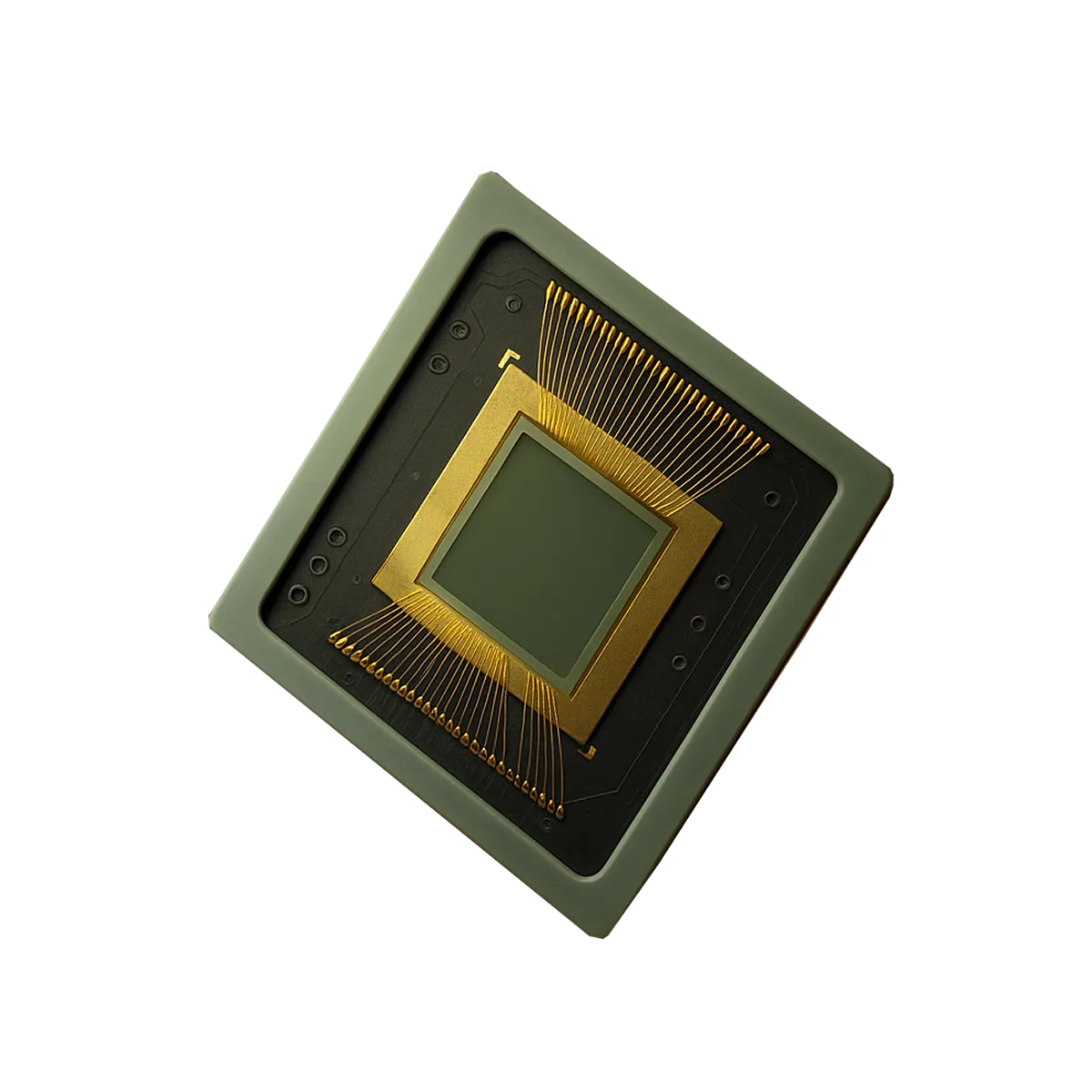

APX014
Model
APX002
Chip Size
5.7 mm × 6.1 mm
Pixel Size
20 μm × 20μm
Shutter Mode
—
Application
Autonomous driving / Portable imaging devices
Model
APX004
Chip Size
10.7 mm × 7.5 mm
Pixel Size
2.88 μm × 2.88 μm
Shutter Mode
Roller Shutter
Application
Smart door locks / security cameras
Model
APX014
Chip Size
5.4 mm × 4.05 mm
Pixel Size
2.79 μm × 2.79 μm
Shutter Mode
Global Exposure
Application
AI-motion Perception / SLAM / 3D Measurement
Model Specifications
Model
Document
Contact Sales
Shutter Type(APS)
APS Resolution(MP)
EVS Resolution(MP)
Pixel Array
Pixel Size(μm)
Optical Size
CFA/Chroma
Max APS Frame Rate(FPS)
Max EVS Frame Rate(FPS)
APS DR(dB)
EVS DR(dB)
Data Interface
Global
1.3
1.3
1280Hx1024V
2.79 x 2.79
1/4"
MONO
Full @ 120
Full @ 1000
60
120
MIPI, DVP, QSPI
Rolling
4
1
APS: 2688H x 1520V
EVS: 1344H x 760V
3.15×3.15
1/1.64"
BAYER
Full @ 60
Full @ 500
68
120
MIPI, DVP,QSPI
Rolling
8
0.5
APS: 3264H×2448V
EVS: 816H x 612V
1.89 x 1.89
1/2"
RGBW
Full @ 30
Full @ 1000
60
100
MIPI
Rolling
8
0.5
APS: 3264H×2448V
EVS: 816H x 612V
1.89×1.89
1/2"
QBAYER
Full @ 30
Full @ 1000
60
100
